LAPIS HINGES - 110° and 94° opening angle snap-on assembly
 With in-line mounting plate, arm and door side cover caps.
 Snap-on assembly.
ORDER NUMBER

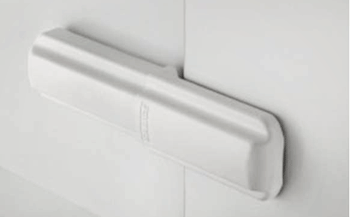

  MATTE WHITE
Full overlay - Integrated soft-closing 110° opening
Full overlay - Push-to-open 94° opening

H-SO110FL.WH
H-PU094FL.WH

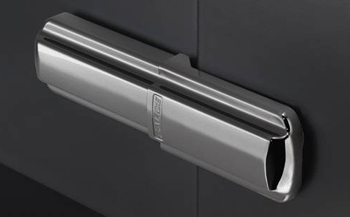

  GLOSS BLACK
Full overlay - Integrated soft-closing 110° opening
Full overlay - Push-to-open 94° opening
H-SO110FL.BL
H-PU094FL.BL

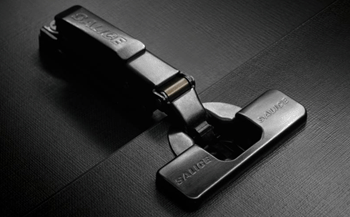

 TITANIUM INTEGRATED SOFT-CLOSING HINGES
 110° opening angle snap-on assembly
 Premium: with titanium in-line mounting plate, safety caps & door
ORDER NUMBER
      FULL OVERLAY - integrated soft-closing
HALF OVERLAY - integrated soft-closing
H-SO110FP.TI
H-SO110HP.Ti



  Integrated soft-closing hinges
ORDER NUMBER

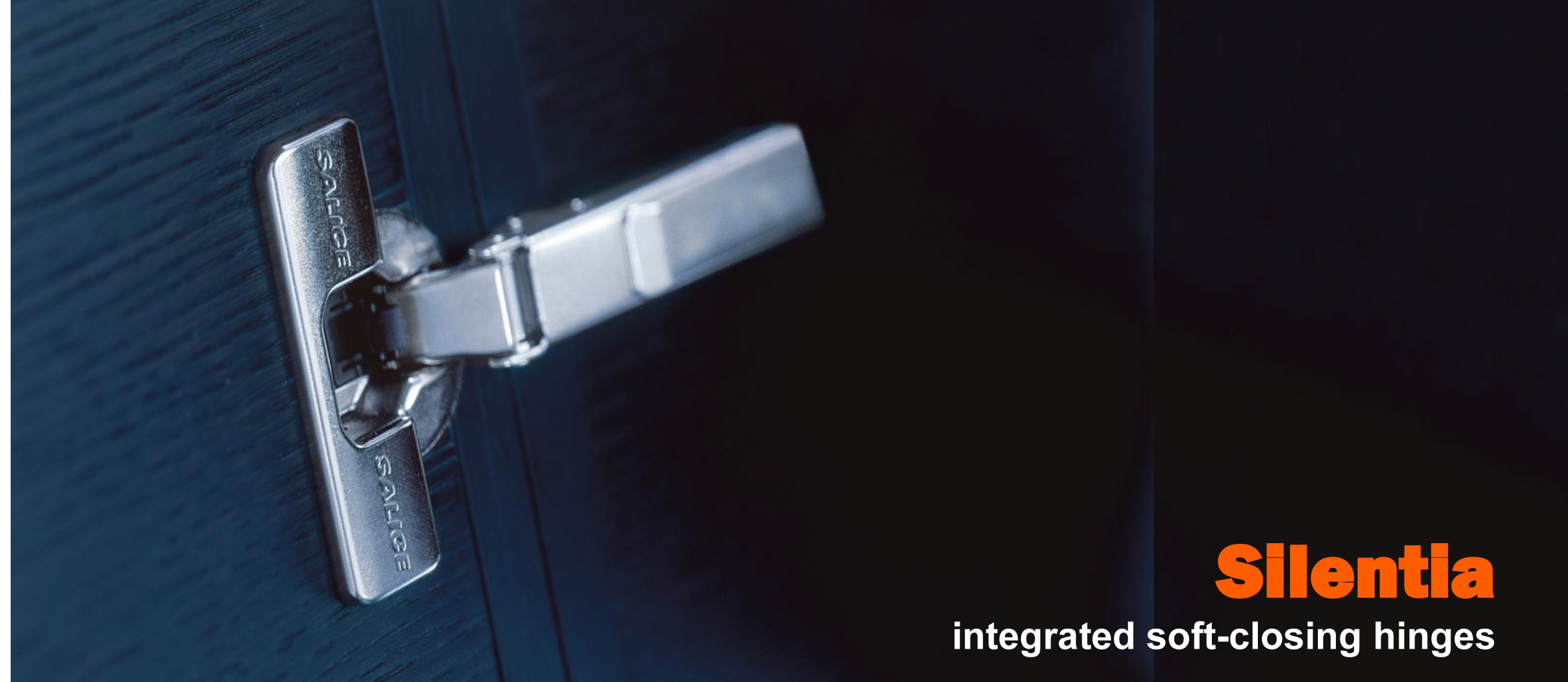

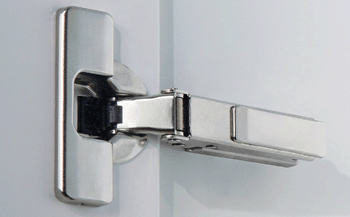

      Silentia integrated soft-closing hinges
110° opening angle snap-on assembly
Premium: with in-line mounting plate, safety cap and door cover cap

Full overlay - premium in-line mounting plate, safety cap and door cover cap
Half overlay - premium in-line mounting plate, safety cap and door cover cap
Inset - premium in-line mounting plate, safety cap and door cover cap

H-SO110FP
H-SO110HP
H-SO110IP

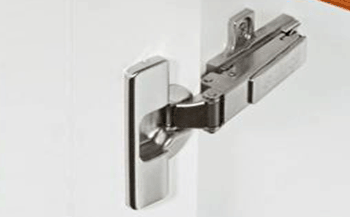

      Silentia integrated soft-closing hinges
110° opening angle snap-on assembly
Standard: with cruciform mounting plate and safety cap

Full overlay - standard cruciform mounting plate and safety cap
Half overlay - standard cruciform mounting plate and safety cap
Inset - standard cruciform mounting plate and safety cap

H-SO110FS
H-SO110HS
H-SO110IS

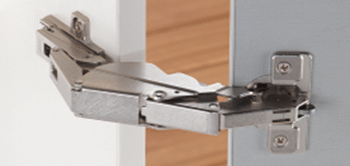

      Silentia integrated soft-closing hinges
155° opening angle snap-on assembly
Zero prostrusion feature

Full overlay - premium in-line mounting plate
Full overlay - standard cruciform mounting plate

H-SO155FP
H-SO155FS

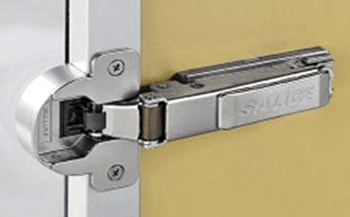

Silentia integrated soft-closing hinges
105° opening angle snap-on assembly
For narrow aluminum frames

For narrow aluminum frames
Full overlay - premium in-line mounting plate and safety cap
Full overlay - standard cruciform mounting plate and safety cap

H-SO105FP.AL
H-SO105FS.AL


  Silentia integrated soft-closing hinge accessories
ORDER NUMBER

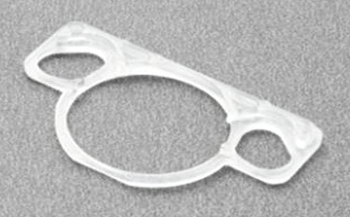

  1.8mm spacer for Silentia 110° opening hinges
For wide aluminum frames


S2XX86KT
      1.8mm spacer for Silentia 155° opening hinges
For wide aluminum frames
S2XF86KT





  Push-to-open hinges with reverse-spring technology
ORDER NUMBER

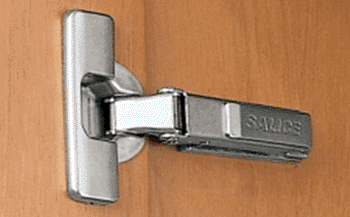

  Push-to-open hinges with reverse-spring technology
110° opening angle snap-on assembly

Full overlay - premium in-line mounting plate, safety cap & door cover cap
Half overlay - premium in-line mounting plate, safety cap & door cover cap
Inset - premium in-line mounting plate, safety cap & door cover cap

H-PU110FP
H-PU110HP
H-PU110IP

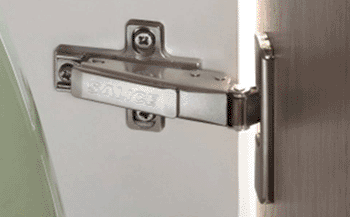

      Push-to-open hinges with reverse-spring technology
110° opening angle snap-on assembly
Standard: with cruciform mounting plate and safety cap

Full overlay - standard cruciform mounting plate and safety cap
Half overlay - standard cruciform mounting plate and safety cap
Inset - standard cruciform mounting plate and safety cap





H-PU110FS
H-PU110HS
H-PU110IS
      Push-to-open hinges with reverse-spring technology
155° opening angle snap-on assembly
Zero prostrusion feature

Full overlay - premium in-line mounting plate
Full overlay - standard cruciform mounting plate

H-PU155FP
H-PU155FS
      Push-to-open hinges with reverse-spring technology
105° opening angle snap-on assembly
For narrow aluminum frames

Full overlay - premium in-line mounting plate and safety cap
Full overlay - standard cruciform mounting plate and safety cap

H-PU105FP.AL
H-PU105FS.AL

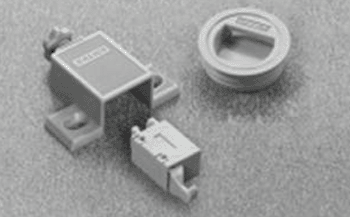

  Push-to-open hinge accessories
ORDER NUMBER

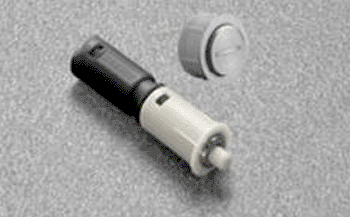

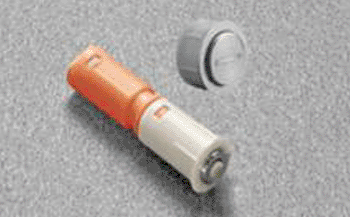

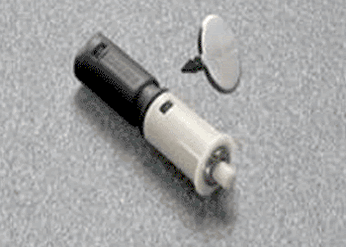

      Regular magnetic push with regular catch plate
For 1,000mm tall doors


H-PUREGMAG.
REGPLATE

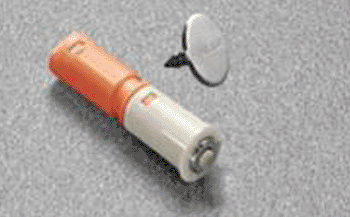

      Regular magnetic push with regular catch plate
For 1,000mm tall doors


H-PUREGMAG.
REGPLATE

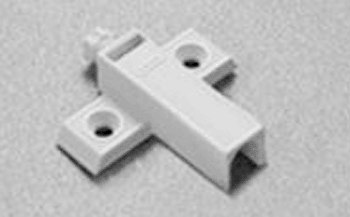

      Adapter for magnetic push for half overlay & inset applications.
With depth adjustment.


H-PUADPMAG
      Adapter for magnetic push for half overlay & inset applications.
With depth adjustment.


H-PUADPMAG
      Regular magnetic push with regular catch plate
For 1,000mm tall doors


H-PUREGMAG.
REGPLATE
      Adapter for magnetic push for half overlay & inset applications.
With depth adjustment.


H-PUADPMAG


  Basic self-closing hinge accessoriess
ORDER NUMBER

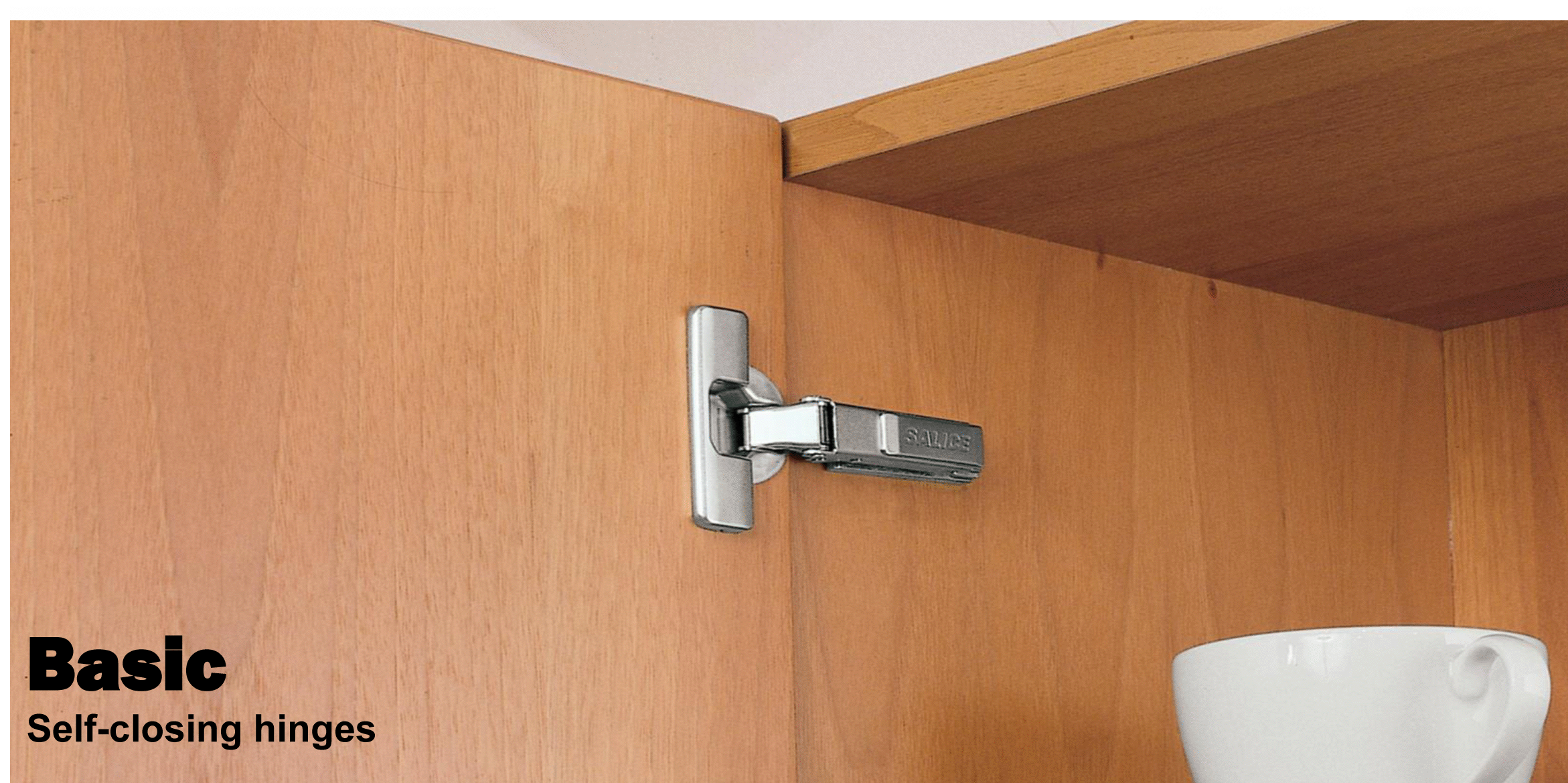

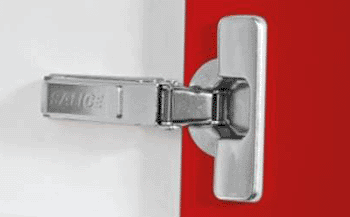

      Basic self-closing hinges
110° opening angle snap-on assembly
Premium: with in-line mounting plate, safety cap and door cover cap

Full overlay - premium in-line mounting plate, safety cap and door cover cap
Half overlay - premium in-line mounting plate, safety cap and door cover cap
Inset - premium in-line mounting plate, safety cap and door cover cap

H-BA110FP
H-BA110HP
H-BA110IP

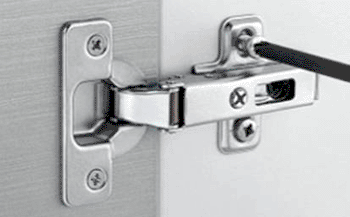

  Basic self-closing hinges
110° opening angle snap-on assembly
Standard: with cruciform mounting plate and safety cap

Full overlay - standard cruciform mounting plate and safety cap
Half overlay - standard cruciform mounting plate and safety cap
Inset - standard cruciform mounting plate and safety cap

H-BA110FS
H-BA110HS
H-BA110IS

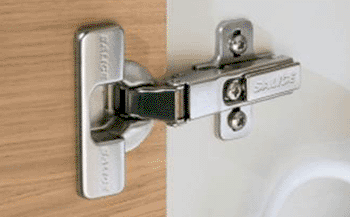

  Basic self-closing hinges
110° opening angle slide-on assembly
Standard: with slide-on cruciform mounting plate

Full overlay - standard slide-on cruciform mounting plate
Half overlay - standard slide-on cruciform mounting plate
Inset - standard slide-on cruciform mounting plate
H-BA110FS.SLIDE
H-BA110HS.SLIDE
H-BA110IS.SLIDE




  Basic self-closing hinge accessoriess
ORDER NUMBER

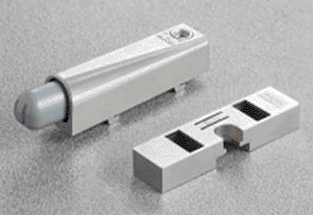

  Smove adjustable strength soft-closing adapter
1 Smove can hold upto 1,500mm to 2,000mm tall doors
Only works with cruciform mounting plates

Full overlay
Half overlay
Inset

H-BASMOVEFS
H-BASMOVEHS
H-BASMOVEIS
